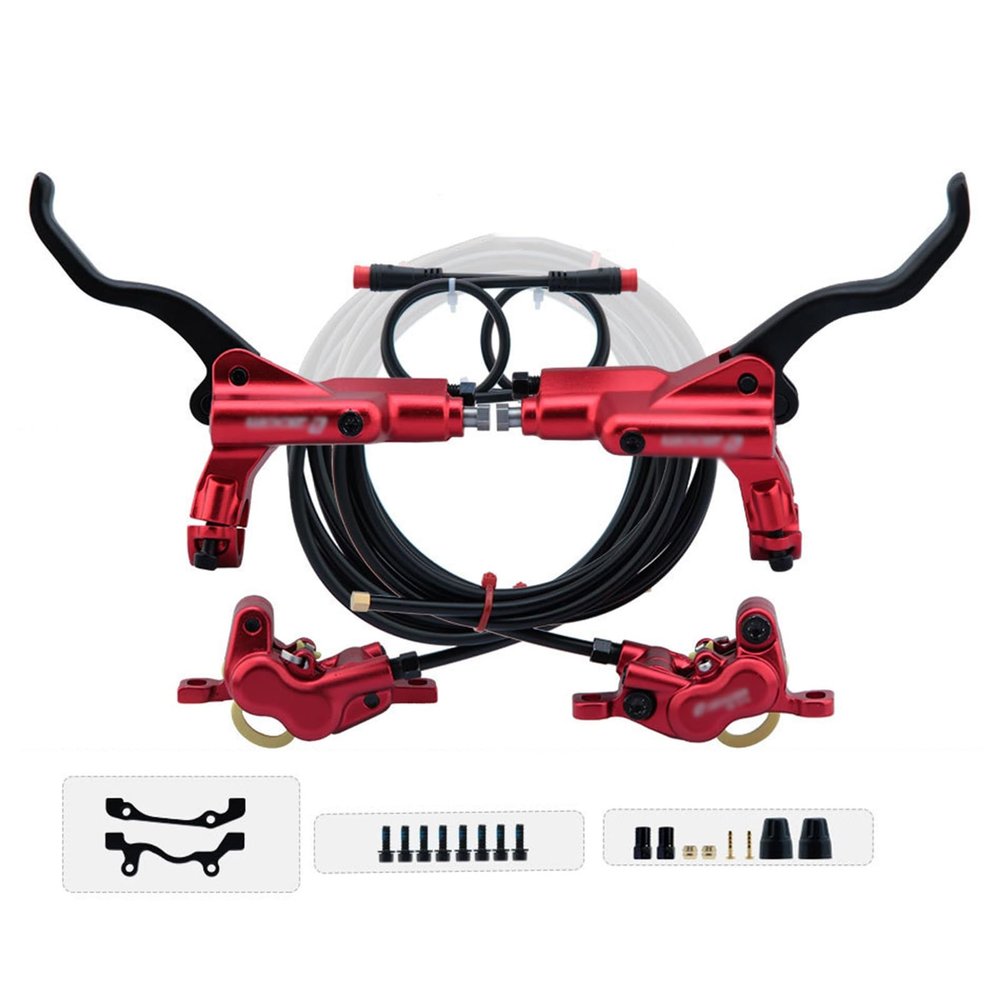

MirOdo E-Bike Hydraulic Disc Brake Set 4-Pistons 2-PIN Power-Off Electric Bike Disc Brake 2300mm Front Rear Hose with Mounting Adapter and Installation Tool (Color : Red)

Description

• High-quality material: CNC aluminum alloy body, two-finger brake lever, integrated oil cylinder system. The handlebar diameter is 22mm. The rear caliper hose and control lever are separated for easy internal routing.
• Powerful Braking Force: Dual Brake Four PistonsThe brake lever directlytransmits the oil pressure to the brake block, whichincreases the braking force by 25% and the wearresistance by 150%compared with the double-piston brake of the same level.Keep the brakes stable and make the braking more efficient.
• Two-pin connector:This brake system comes with a brake automatic power-off sensor and is compatible with 2-pin connectors. When you brake, the power output is automatically cut off, ensuring quick and efficient braking.
• One-piece cylinder:The hydraulic brake lever is an integrated oil cylinder structure, which is durable and does not leak oil!(the caliper has been filled with mineral oil and can be used directly without oiling.)
• Easy to install:Product comes with a set of installation tools.Just a simple installation makes for the safest and most reliable braking!Compatible with 160mm rotors, IS/PM universal mount adapter (only for e-bike models with calipers mounted on the left side).The front and the rear brake hose length is 2300mm.Please check the length of the fuel line before purchase, otherwise it will not be installed.

Product Introduction
Product name:Mountain Bike 4 Piston Hydraulic Brake
Color: black and red optional
Power-off principle: Magnetic induction 2-pin power-off wire
Tubing length: front 2300mm and rear 2300mm
Material: aluminum alloy
Weight: 800g
Suitable brake rotors size: 160mmRotors Not included in the product
Fits handlebar diameter: 22mm
Mounting positionleft side
Brake seat installation size: 51mm/74m

Packing List
A pair of brake handles (left and right)
A pair of Brake hose (front and rear)
A pair of Brake calipers
A pair of Brake padsalready installed
2 Adapters
Set of mounting screws
Set of installation tools
Product accessories:2 rubber bushings; 2 spare oil pins; 2 copper bushings; 2 locking tube screwsas shown in the picture

Warm Tips:
1.Please check the above dimensions carefully. If you still have any unfamiliar dimensions, please contact customer service and we will measure the relevant dimensions for you!
2.Under normal circumstances, mountain bikes are universal.Special attention is that this brake can only be adapted to the left brake disc.
3.Due to manual measurement, please allow 1-3mm difference. Thank you for your understanding!

Warning:
1.Mineral oil is not included in the package.The caliper has been filled with mineral oil!You don't need to fill it with mineral oil anymore
2.Before installing the brake disc, please do not remove the red blocking plate to empty the brake lever, otherwise it will cause oil leakage or damage to the oil disc!
